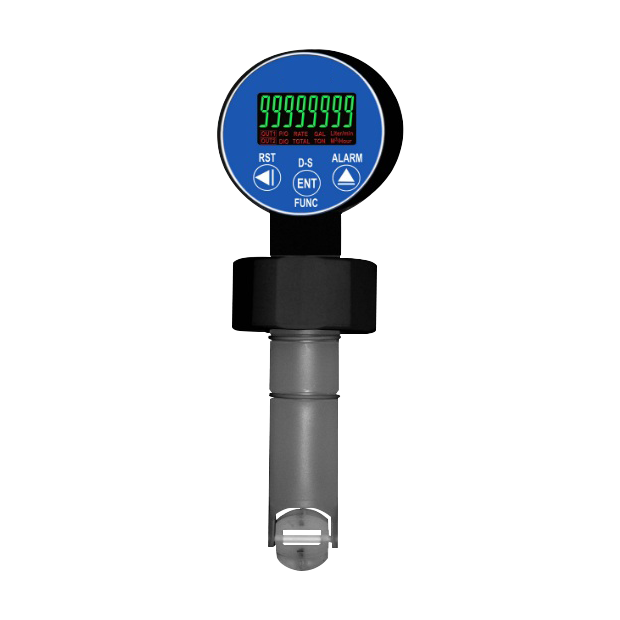

■ High alarm effect, the screen automatically changes color when the alarm is activated (red/green)
■ Accuracy±0.75%F.S.
■ Measuring pipe size range: 15 to 600mm (0.5~24”)
■ Measuring flow velocity range: 0.1 to 8M/sec.
■ Wide power input range: 14-28VDC
■ 4 switchable flow unit: Liter、GAL、M3、TON
■ Protection level: IP65
■ Relay x2 alarm function is optional
■ 4-20mA or 1-5V analog output function (Option)
■ Digital RS-485 output (Option)

AT504-7DS pressure switch adopts piston sensor, which can be used for media such as neutral hydraulic oil. The setting value of the pressure switch can be adjusted, with adjustment range of 0.3 to 40MPa. Mainly used in nuclear power, chemical, shipping, metallurgy and other industries.

AT505-7 series pressure switch adopts hermetically sealed piston, which is specially designed for neutral gas contains oil mist.
Adjustable set point range 0.3⋯25 MPa.

AT504-7 Series pressure switch adopt stainless steel diaphragm as pressure sensor, which can apply to non-corrosive media such as neutral gas and liquid pressure monitor and control.
Adjustable set point range 0⋯0.3~40MPa.

AT100-7D pressure switch adopt SS316L bellow pressure sensor, which can apply to non-corrosive media such as neutral gas and liquid pressure monitor and control.

AT-JB adjustable pressure switch has been applied to various industrial operation site to achieve auto pressure control. Actuate point is adjustable through an internal screw. Mechanical stops protect both the spring and micro switch from overpressure.

AT520-7 Series pressure switch adopt SS316L bellow pressure sensor, which can apply to noncorrosive media such as neutral gas and liquid pressure monitor and control. It can also been applied in vacuum condition.

AT505-18D pressure switch adopts no leakage steel piston as pressure sensor, which is applicable to hydraulic oil, lubricating oil, light fuel oil and other neutral lubricating media. Adjustable set point range 0.5⋯40MPa.

MS-APS-5000X pressure gauge adopts SDPT micro switch. Compared with other electrical contact, MS- APS-5000X has superior indication accuracy, set point accuracy and repeatability, which is suitable for pressure measurement, monitor and auto control.

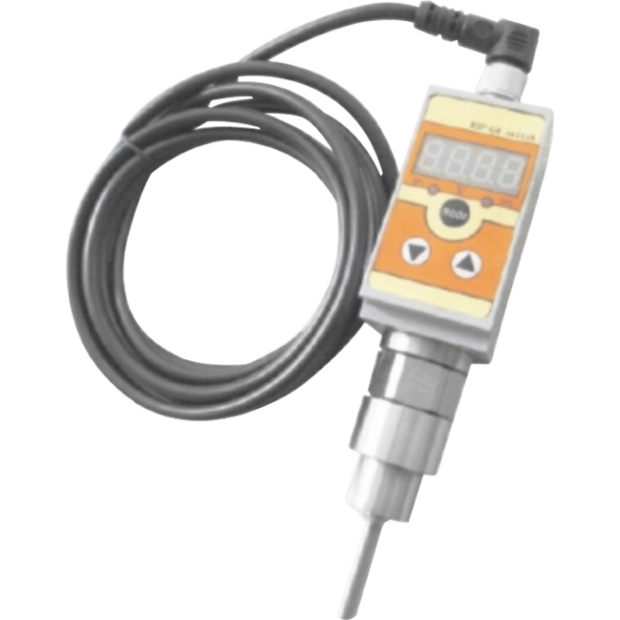

DTS-4ED(0.5) digital temperature switch is equipped with two sets of switch output and LED screen display, which integrates temperature measurement, display, and control. DTS-4ED(0.5) adopts high precision sensor. After the output signal is processed by an amplifier, it is sent to the high precision analog-digital converter, which can be converted into the digital signal suitable for the microprocessor. The temperature of the control system is measured and controlled by the digital signal, which is suitable for hydraulic, petroleum, chemical, mechanical and other industrial environments.

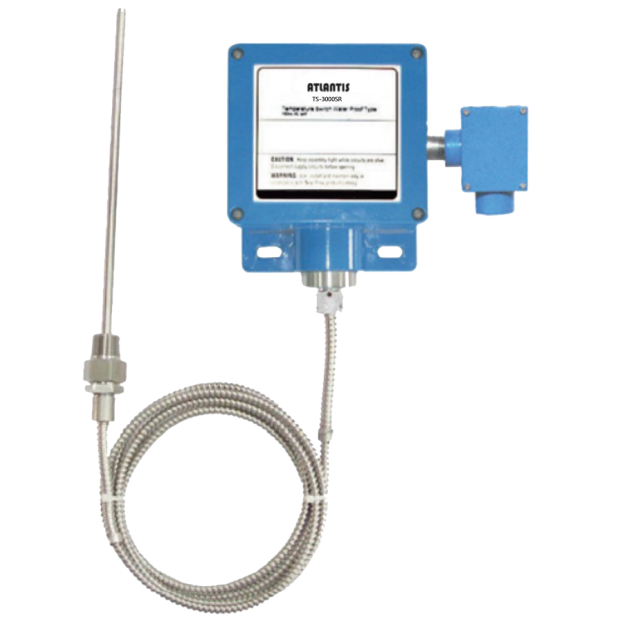

TS-3000SR remote reading temperature switch adopts SPDT micro switch, features max. current 5A and NEMA 4 / NEMA 4X waterproof protection, which is suitable for temp control in high current environment.

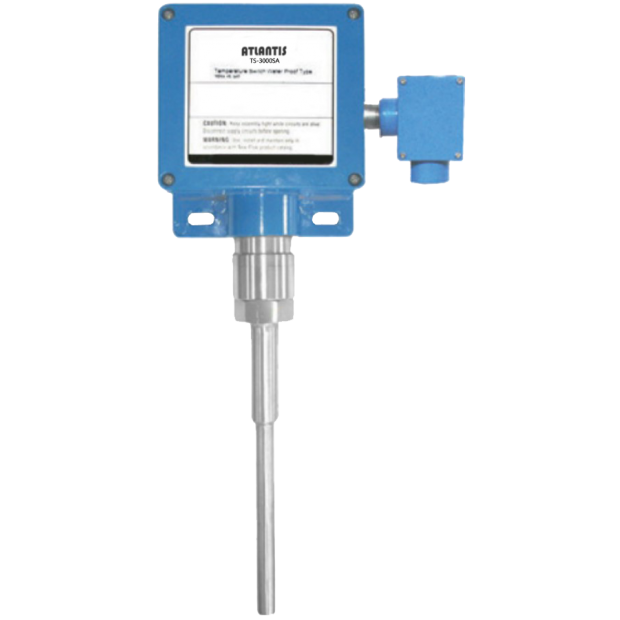

TS-3000SA bottom connected temperature switch adopts SPDT micro switch, features max. current 5A and NEMA 4 / NEMA 4X waterproof protection, which is suitable for temp. control in high current environment.
