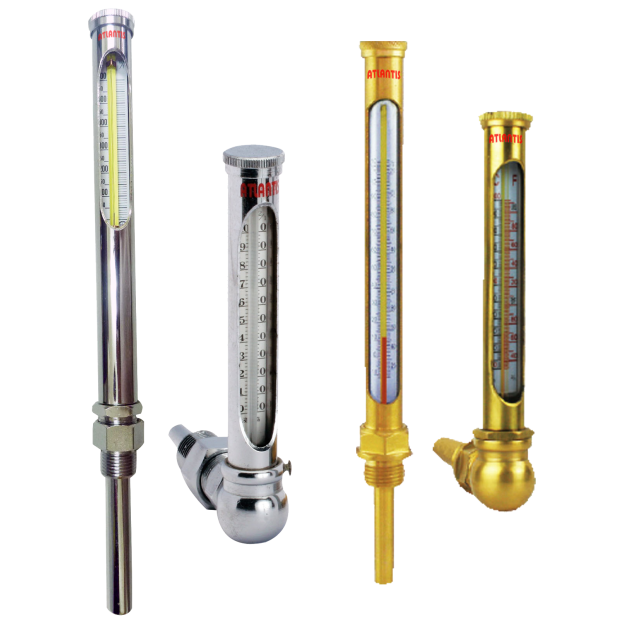

Metal Tube Industrial Glass Thermometer RG series
Metal Tube Industrial Glass Thermometer RG series
RG series glass thermometer encased with specially designed cylinder-shaped metal case to prevent any damage from greasy, vapor or other substances. The special design makes RG series suitable for using in merchant ship, fishing boat, high temperature exhaust environment and others industrial application.
DETAIL
Model: RG series
Introduction
RG series glass thermometer encased with specially designed cylinder-shaped metal case to prevent any damage from greasy, vapor or other substances. The special design makes RG series suitable for using in merchant ship, fishing boat, high temperature exhaust environment and others industrial application.
Features
■ Cylinder-shaped metal case, specially design for vessels use
■ Two types installation available: Straight ／90〫angle mount
■ 3 thermowell material available: brass／chrome-plated steel／stainless steel
■ Temperature scale and high accuracy type available upon request
Main Specifications
▼Installation type
RGS-B／RGS-C type: Straight with thermowell
RGL-B／RGL-C type: 90〫angle with thermowell
▼Temperature range
-10~600℃
Customized temperature range scale on dial face
▼Process connection
1/2”PF／NPT／PT
Other thread types available upon request
▼Connection material
RGS-B／RGL-B type▼
Copper alloy
RGS-C／RGL-C type▼
Anodized chrome-plated steel ／Stainless steel (option)
▼Stem + thermowell length
(include thread)
50／60／95／110／125 mm
Other lengths available upon request
▼Applicable fluid
Liquid and gas that compatible with connection’s material
Other Specifications
▼Case material
Chrome-plated steel
▼Body dimension
Cylinder-shaped metal case
120mm x 19mmΦ／
140mm x 19mmΦ／
150mm x 19mmΦ／
250mm x 24mmΦ
▼Window
Glass
▼Dial face
Single/dual scale (℃/℉) on
Aluminum whiteboard
▼Liquid-filling
Red or blue organic liquid
▼Measuring elements
Liquid-expansion
Temp. sensing area: last 2”of stem
▼Accuracy
±0.5／1／2／5／6°C
(Depends on temp. range)
