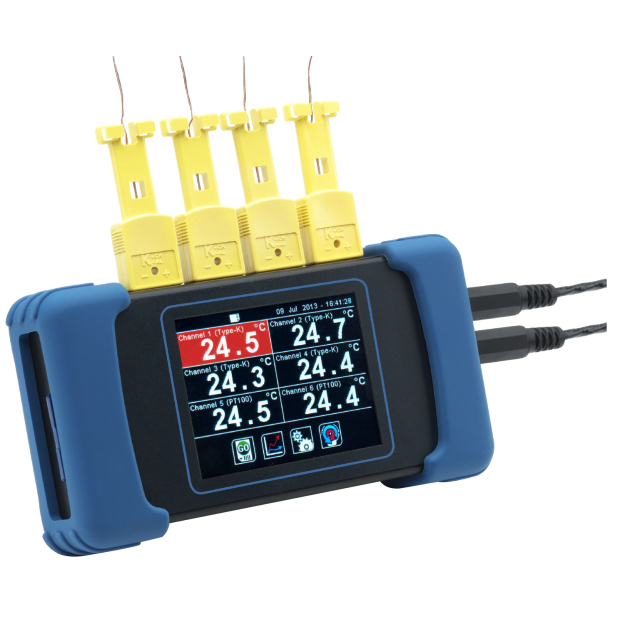

Portable 6-channel Temperature Data Logger with Touch Screen TDL-R/D-6C
Portable 6-channel Temperature Data Logger with Touch Screen TDL-R/D-6C
Features
■ OEM service
■ 2.83” TFT touch screen display with backlight to ensure clear observation in dark environment
■ High/low alarm can be set on each channel
■ Switchable temperature unit: ℃/℉
■ The temperature of any two channels can be compared by showing temperature change diagram
■ Adjustable display mode: to show all 6 channel at the same time or to show one by one
■ Max., min., and avg. value display
■ Adjustable record interval: 1 to 86400 secs
■ Start/stop data record manually or schedule the start/stop time of data record
■ Support 32GB SD or SDHC card to save at least one year record
■ 5VDC power adapter (standard), rechargeable NiMH battery (option)
■ The data log format can be saved as .csv
■ OEM service
■ 2.83” TFT touch screen display with backlight to ensure clear observation in dark environment
■ High/low alarm can be set on each channel
■ Switchable temperature unit: ℃/℉
■ The temperature of any two channels can be compared by showing temperature change diagram
■ Adjustable display mode: to show all 6 channel at the same time or to show one by one
■ Max., min., and avg. value display
■ Adjustable record interval: 1 to 86400 secs
■ Start/stop data record manually or schedule the start/stop time of data record
■ Support 32GB SD or SDHC card to save at least one year record
■ 5VDC power adapter (standard), rechargeable NiMH battery (option)
■ The data log format can be saved as .csv
DETAIL
Model: TDL-R/D-6C
Features
■ OEM service
■ 2.83” TFT touch screen display with backlight to ensure clear observation in dark environment
■ High/low alarm can be set on each channel
■ Switchable temperature unit: ℃/℉
■ The temperature of any two channels can be compared by showing temperature change diagram
■ Adjustable display mode: to show all 6 channel at the same time or to show one by one
■ Max., min., and avg. value display
■ Adjustable record interval: 1 to 86400 secs
■ Start/stop data record manually or schedule the start/stop time of data record
■ Support 32GB SD or SDHC card to save at least one year record
■ 5VDC power adapter (standard), rechargeable NiMH battery (option)
■ The data log format can be saved as .csv
Main Specifications
▼Dimension
136 (W) x 71 (H) x 32 (D) mm
▼Input
Thermocouple inputs x4
3-wire Pt100 inputs x2 with
3-pole stereo TRS 3.5mm connectors
▼Screen display
2.83”(72mm) resistive touch TFT, 320 x 240 pixels with backlight
▼Configurable parameters
Temp. unit, alarms, signal process, date and time, data logging, power options, graph channels, sample period, number of samples
▼Display mode
Measured temperature / cold junction temperature / alarm events
▼Maximum SD card capacity
32 GB SD or SDHC
▼Temperature range
Please refer to input type and temperature range table
▼Ambient temperature
0°C to 50°C
▼Accessory
Spare 5VDC main adapter
Spare 4GB SD card
Calibration certificate
Other Specifications
▼Power supply
2 x 1.5V NiMH rechargeable
AA batteries > 2000 mAh / 2 x 1.5V alkaline AA batteries > 2000 mAh / 5VDC 250mA adapter
▼Data log interval
1 to 86,400 secs
Start/stop data record manually or schedule the start/stop time of data record
▼Resolution
0.1° for temp. below 1000°C/℉
1° for temp. above 1000°C/℉
▼Alarm configuration
12 alarms (2 for per channel) with adjustable level HI or LO
▼Signal processing
Avg., min., max., std. deviation, 2-channel temp. difference
▼Response time
1s
▼Current draw
250mA while logging with full display brightness 60mA in power saving mode
▼Maximum input voltage
60VDC or 24V rms to earth
ground
▼Output file format
.csv
▼Weight
180g without battery
