Dry Type Double Flange Diaphragm DS200 Series

Diaphragm pressure gauges are used when medium fluid is corrosive, contaminated, viscous and crystalline or with impurities. DS148(W) series is particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction.

quantity :

－＋

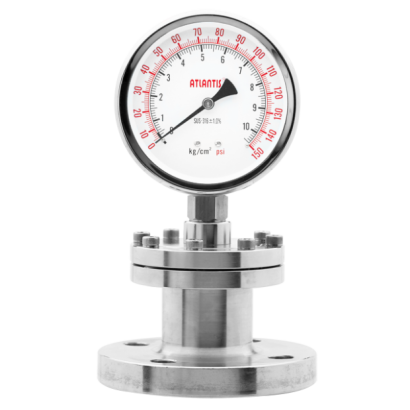

Dry Type Double Flange Diaphragm
Model: DS200 Series

Introduction
Double flange diaphragm pressure gauge is applicable to special working environment and corrosive fluids, such as high temperature, acid, polluted water, heavy oil, concrete and used in the pressure measurement of the working fluid easy to be crystallized, such as petroleum plant, chemical factory, paper mill, sewage treatment, dye, paint and so on.

Features
■ High accuracy, high security, high reliability
■ Convenient to disassemble, easy to wash, invulnerable to pollution, clean appearance and could operate safely
■ Application：Chemical, petrochemical industry

SPECIFICATIONS
▼Material:
Diaphragm housing-Standard SUS304＜Option: SUS316；SUS316L＞
▼Connection Flange Base:
SUS304；SUS316；SUS316L
▼Diaphragm:
SUS316L
＜Option：PTFE（Teflon）；Hastelloy C、Titanium、Tantalum or other special material＞
▼Flange Size:
JIS 10K-1/2”; 3/4”; 1”; 1-1/4”; 1-1/2”; 2” FF＜Option: RF＞
ANSI 150LB-1/2”; 3/4”; 1”; 1-1/4”; 1-1/2”;2”RF ＜Option: FF＞
DIN、EN10Bar-15；20；25；32；40；50；80；100
GT/T 1.0MPa-15；20；25；32；40；50；80；100＜Other size could be customized＞
▼Gauge Connection:
1/4”；3/8”；1/2” PT/NPT/PF Female
▼Pressure Range:
6000mmH2O above or -1/60 kg/cm²
▼Withstand Temperature:
80℃；Environmental temperature 10~60℃
▼Option:
Add cooling tube (10cm)
Add capillary tube (Conduit pipe)
Add pressure gauge damper
Coating PTFE(Teflon)/ PFA
Lining PTFE(Teflon)
Lower flange attach flushing gole
