DIAPHRAGM SEALED Flange Process Connection－Extended diaphragm type DS300L series
DIAPHRAGM SEALED Flange Process Connection－Extended diaphragm type DS300L series
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities. Flange type diaphragm seal is especially suitable for highly viscous or crystalline media. DS300L is with an extended welded diaphragm with contoured diaphragm bed, especially for thick wall or #isolated tanks and pipelines.
DETAIL

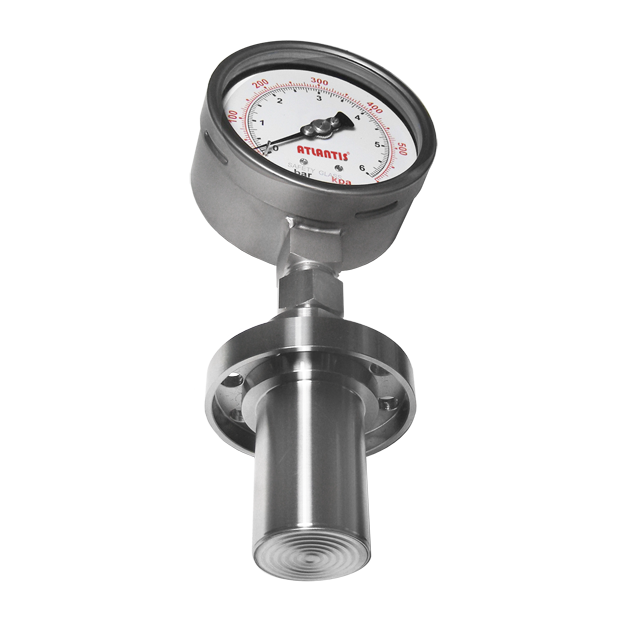

Model: DS300L series
Introduction
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities. Flange type diaphragm seal is especially suitable for highly viscous or crystalline media. DS300L is with an extended welded diaphragm with contoured diaphragm bed, especially for thick wall or #isolated tanks and pipelines.
SPECIFICATIONS
▼Instruments
All series pressure gauges and pressure transmitters are available
▼Process Connection (Flange)：
JIS 10K－1-1/2"；2"；3" (FF standard ; RF optional)
ANSI 150LB－1-1/2"；2"；3" (RF standard ; FF optional)
DIN、EN 10Bar－40；50；80
GB/T 1.0Mpa－40；50；80
(Other flange sizes are available upon request)
▼Extended Diaphragm Length：
10 ~ 200 mm by order
▼Flange Material：
SUS304；SUS316；SUS316L
▼Diaphragm：
Standard－SUS316L
Option－Nickel, Hastelloy C, Monel, Tantalum, Titanium
▼Coating (option)：
Teflon；PFA
▼Temperature：
medium +80℃；
ambient 10 to 60℃；
for medium 80~400℃ or ambient below 10℃ available made-to-order
▼Filling Fluid：
Glycerin or silicon oil standard (depends on temperature), fluorocarbon oil available
▼Pressure Range：
0 / 0.6 ~ 0 / 60 kg/cm2 (bar), positive, negative or compound available
▼Accessory (option)：
Cooling fin
Capillary for remote measuring (specify length of capillary when ordering)
