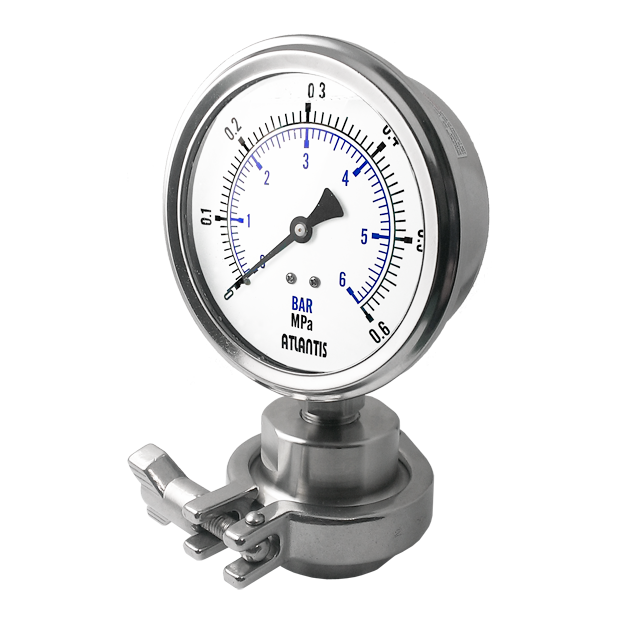

DIAPHRAGM PRESSURE GAUGE - Sanitary Process Connection – Tri-Clamp Type DS500 series
DIAPHRAGM PRESSURE GAUGE - Sanitary Process Connection – Tri-Clamp Type DS500 series
DS500 series is particularly used in food, beverage, biochemical and pharmaceutical industry. Easy to open, cleaning without residues and quickly measuring point.
DETAIL
Model: DS500 series
Introduction
DS500 series is particularly used in food, beverage, biochemical and pharmaceutical industry. Easy to open, cleaning without residues and quickly measuring point.
Features
■ OEM service
■ Filled with vegetable oil, complying with the food industry standard
SPECIFICATIONS
▼Instruments:
SUS series pressure gauges and pressure transmitters are available.
▼Process connection Tri-Clamp:
Diaphragm housing SS304; SS316; SS316L
▼Diaphragm:
SS316L standard, other material available made-to-order
▼Temperature:
Medium 80 deg.C ; 80~400 deg.C available made-to-order
▼Filling Fluid:
Glycerin, food ind compatible
▼Pressure Range :
Tri-clamp 1-1/2”：0/2.5 ~ 0/40 kg/cm2 (bar)
Tri-clamp 2” ：-760mmHg ~ 40kg/cm2 (bar)
Tri-clamp 2-1/2”：-760mmHg ~ 40kg/cm2 (bar)
▼Accessory assembly (option):
Cooling fin
Clamp ring (ferrule) + welding socket (whole set)
Capillary for remote measuring (specify length of capillary when ordering)
