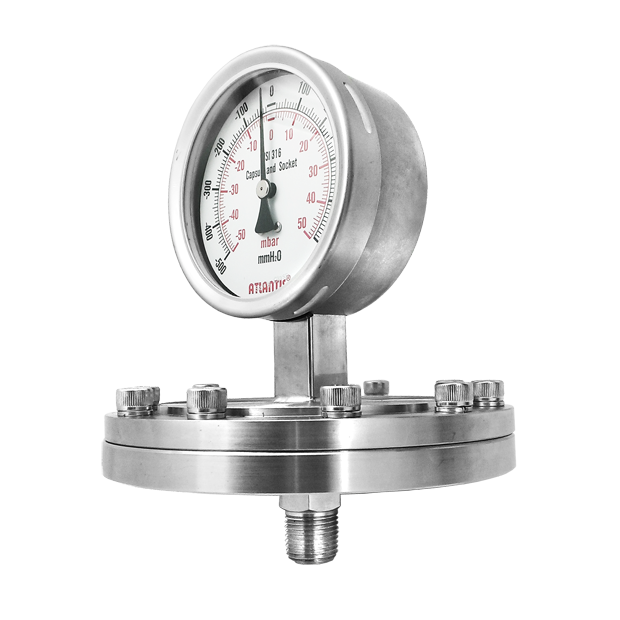

Dry Type Threaded Diaphragm Seals DDS1160 (S)
Dry Type Threaded Diaphragm Seals DDS1160 (S)
Isolate pressure gauge from corrosive, viscous, and low crystallinity fluid./Base on the diaphragm material is PTFE, the minimum measureable pressure is 1000mmH2O /Threaded diaphragm seals with flushing hole (option)
DETAIL
Model: DDS1160 (S)
Introduction
Isolate pressure gauge from corrosive, viscous, and low crystallinity fluid./Base on the diaphragm material is PTFE, the minimum measureable pressure is 1000mmH2O /Threaded diaphragm seals with flushing hole (option)
SPECIFICATIONS
▼Diaphragm seals diameter
160 mm
▼Structure
Threaded diaphragm seals
Thread connection
▼Filling oil
Glycerin / Silicone oil
(depends on media temp.)
▼O-ring
Rubber
▼Thread size
1/4”,3/8”,1/2”,3/4”,1”
▼Thread type
#BSPT , #NPT , #PF
▼Pressure range
Min.: 0.1 bar
Max.: 60 bar
▼Ambient temperature
10°C to 60°C
▼Fluid temperature
+80°C
For fluid temp. 80℃ to 400℃ or ambient temp. below 10℃: available made-to-order
▼Ambient application
Petrochemical plant
Chemical plant
Paper mill plant
Waste water treatment
Dye industry
▼Applicable fluid
Corrosive
Low-crystallinity
