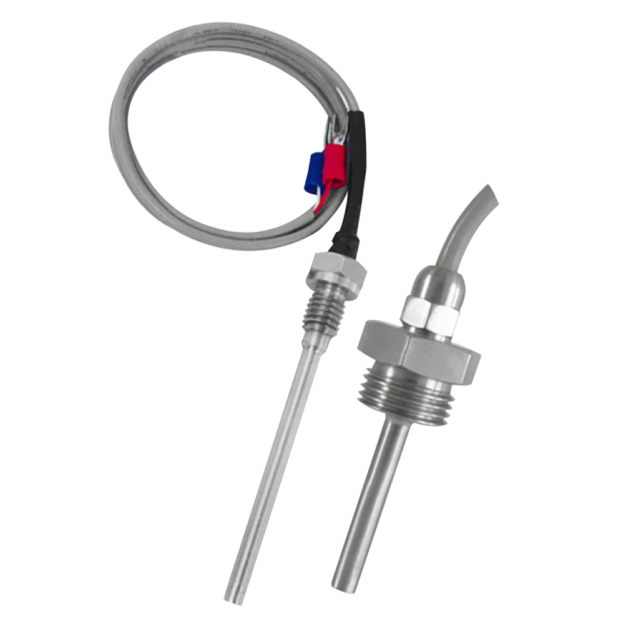

Temperature Sensor ATT-110
Temperature Sensor ATT-110
ATT-110 Temperature sensor adopts high performance and high reliability RTD Pt100. It features compact design with fast response to ambient temperature change. ATT-110 temperature sensor is specially design for air compressor. Its wide range temperature measurement makes ATT-110 suitable for measuring liquid and gas temperature or solid surface temperature in various industrial process application.
DETAIL
Model: ATT-110
Introduction
ATT-110 Temperature sensor adopts high performance and high reliability RTD Pt100. It features compact design with fast response to ambient temperature change. ATT-110 temperature sensor is specially design for air compressor. Its wide range temperature measurement makes ATT-110 suitable for measuring liquid and gas temperature or solid surface temperature in various industrial process application.
Features
■ Temperature sensor adopts RTD Pt100 or Pt1000 (option)
■ Fast response to ambient temperature change
■ Explosion-proof class Exia II CT6
■ Lead sheathed wire
Main specifications
▼Process connection
M20x1.5
R1/4
M12x1.5
Material: stainless steel
Other types are available, please specify your requests
▼Electrical connection
Cable outlet (2-wire)
Cable outlet (3-wire, standard)
Aviation plug
Other types are available, please specify your requests
▼Hex nut
SW17 / SW19 / SW24
▼Temperature range
-50 to 150℃ (standard)
-50 to 300℃ (with cooling fin)
▼Stem Insertion length
Min. 10mm, custom length
▼Stem outer diameter
Ø4 / Ø5 / Ø6 / Ø8
High temp. type (special): ≥Ø8
▼Protection level
IP65
IP68 (option)
▼Explosion-proof (option)
Exia II CT6
Other Specifications
▼Case
Stainless steel
▼Measuring elements
Pt 100, Class A
Pt 1000, Class A (option)
▼Accuracy
Refer to RTD PT100 Ω accuracy
Class A table
▼Temperature response time
≤30s
▼Current limit
≤5mA
▼Load resistance
100MΩ / 250VDC
▼Stability
≤0.2% F.S. / year
▼Other requests (Option)
Third party notarized documents
Inspection report (issued by Re-Atlantis)
