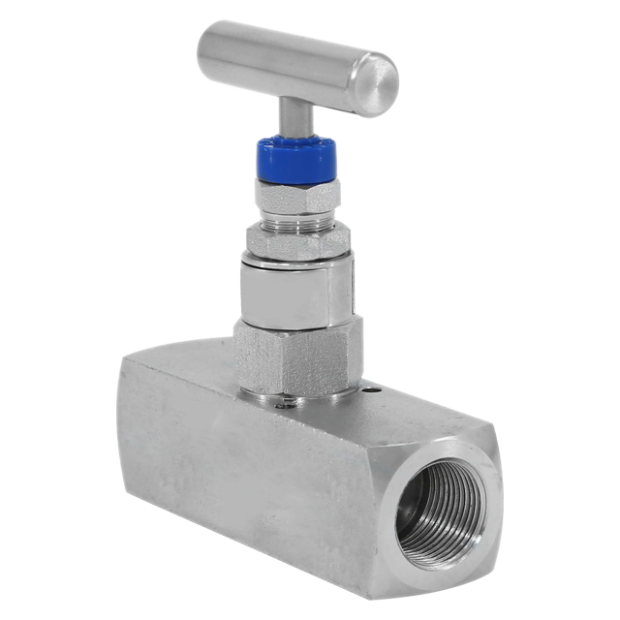

Needle Valve (General Type) NV-GT Series
Needle Valve (General Type) NV-GT Series
NV-GT series needle valve adopts integrated design, suitable for sewage treatment, petrochemical industry, level pressure equipment, and liquid equipment.
DETAIL
Model: NV-GT Series
Introduction
NV-GT series needle valve adopts integrated design, suitable for sewage treatment, petrochemical industry, level pressure equipment, and liquid equipment.
Features
■ OEM service
■ Various valve types and thread specs. for selections
■ Max. operating pressure: 30kg/cm2
■ Max. media temperature: 500℃
■ Size of connection between 1/4”~1”
Main Specifications
▼Valve type
GT1 type (soft / hard sealing) / GT2 type / GT3 type / GT4 type
▼Inlet hole connection
Type: Female thread
Spec.: NPT, G, BSPT, M
For details please refer to each valve type table in following pages
▼Outlet hole connection
Type: Male / Female thread
Spec.: NPT, G, BSPT, M
For details please refer to each valve type table in following pages
▼Port direction
Horizontal / Straight
▼Sealing material
DELRIN (Soft sealing)
Graphite (Hard sealing)
PTFE (Hard sealing)
▼Max. operating pressure
30 kg/cm2
▼Max. media temperature
500℃
