Pressure Transmitter (For Car Industry) PTX-C
Pressure Transmitter (For Car Industry) PTX-C

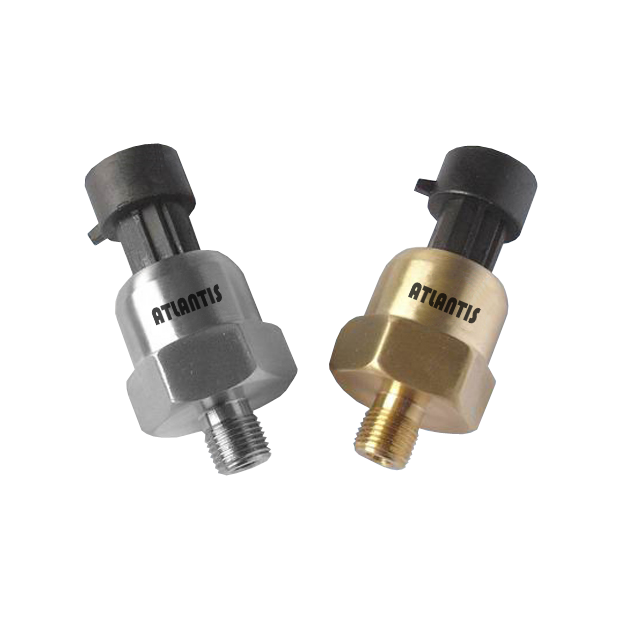

PTX-C pressure transmitter adopts high strength thick-film ceramic with application-specific integrated circuit (ASIC) design. It can apply to bad environments such as high/low temperature, high vibration, thermal shock, mechanical shock and chemical pollution.
PTX-C is mainly used in automatic transmission hydraulic pressure measurement.
PTX-C is mainly used in automatic transmission hydraulic pressure measurement.
DETAIL
Model: PTX-C
Introduction
PTX-C pressure transmitter adopts high strength thick-film ceramic with application-specific integrated circuit (ASIC) design. It can apply to bad environments such as high/low temperature, high vibration, thermal shock, mechanical shock and chemical pollution.
PTX-C is mainly used in automatic transmission hydraulic pressure measurement.
Features
■ OEM service
■ High strength ceramic thick film technology
■ Compact and durable design with great price/performance ratio
■ High integrated circuit increases its stability and reliability
■ Amplified signal
Main specifications
▼Thread
Material: SS 304
G 1/4”
M12 x 1
▼Electrical connector
Packard / PG7 Cable gland
▼Pressure range
Min.: 2 bar
Max.: 400 bar
▼Pressure type
Gauge pressure / Absolute pressure / Sealed pressure
Response time: ≦ 1ms
▼Applicable fluid
Gas and liquid that compatible with ceramic, SS304 and neoprene
▼Temperature range
Operating temperature: -40~+125℃
Compensated temperature: -10~+70℃
Storage temperature: -40~+130℃
▼Vibration test
20g/20-5000Hz, axes X/Y/Z 20g sine 11ms
▼Impact test
100g (11ms)
▼Application
Non-corrosive gas and liquid pressure measurement / Compressor, automotive, nitrogen generator, tire inflator and hydraulic pressure measurement
▼Protection level
IP 65
Other Specifications
▼Housing
SS 304
▼Power supply
24VDC / 12VDC
▼Output signal
Two-wire system: 4~20mA
Three-wire system: 1~5 VDC / 0~5 VDC
▼Measuring elements
Thick-film ceramic
▼Maximum working current
10mA
▼Maximum output impedance
300Ω
▼Insulation
100MΩ, 50VDC
▼Temperature drift
±2% F.S. (max.)
▼Accuracy
0.25% / 0.5%
▼Stability
±0.2% F.S. / year
▼Life cycle
200,000 times
▼Operating pressure
Overpressure: 1.5* full scale
Burst pressure: 3* full scale
