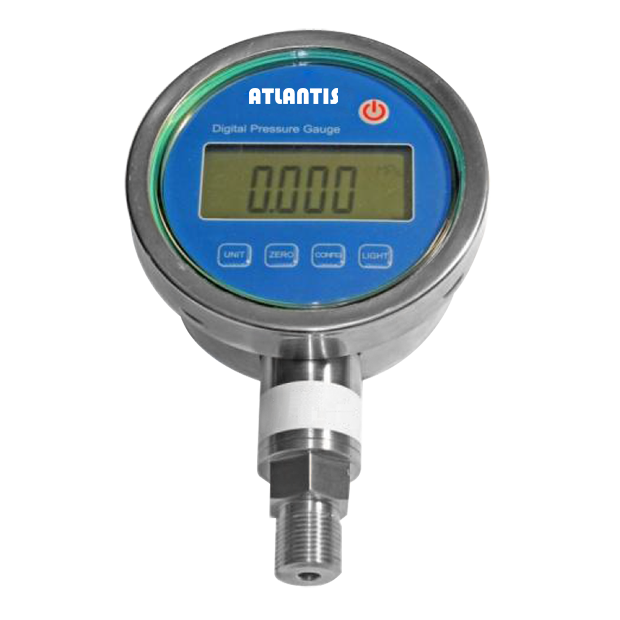

Digital Precision Pressure Gauge (Peak Value Recording Type) AT805C
Digital Precision Pressure Gauge (Peak Value Recording Type) AT805C
AT805C digital pressure gauge with high precision pressure measurement is suitable in field and laboratory pressure measurement and calibration.
DETAIL
Model: AT805C
Introduction
AT805C digital pressure gauge with high precision pressure measurement is suitable in field and laboratory pressure measurement and calibration.
Features
■ OEM service
■ Auto peak value recording
■ Auto reset to zero function
■ Low power consumption
■ Auto power off and non-sleep mode
■ High accuracy - up to 0.1%
Main Specifications
▼Dimension
110 x 50 mm
Overall height: 167 mm
▼Pressure connection
Material: SS304
M20 x 1.5
Other specification available upon request
▼Pressure range
Min.: -1 bar
Max.: 2500 bar
Please refer to pressure range selection table
▼Pressure type
Gauge pressure / Absolute pressure / Sealed pressure
▼Applicable fluid
Liquid and gas that compatible with SS304 / Pure, non-corrosive gas
▼Ambient temperature
-20°C to 70°C
▼Storage temperature
-40°C to 85°C
▼Ambient humidity
< 95% R.H.
▼Atmospheric pressure
860…1060 mbar
▼Protection level
IP65
▼Explosion-proof class
Exia II CT6
Other Specifications
▼Ring
SS304
▼Back housing
Stainless steel
▼Display
4-digit with backlight
▼Refresh rate
4 secs/1 times~10 secs/1 times (Adjustable)
▼Pressure unit
mmH2O, mmHg, inH2O, Pa, kPa, MPa, psi, bar, mbar
▼Measuring elements
High-tech silicon pressure sensor chips SS 316L diaphragm
▼Accuracy
±0.5% / ±0.2% / ±0.1% F.S.
▼Compensated temperature
0°C to 50°C
▼Operating pressure
Please refer to pressure range selection table
▼Power supply
3.6V lithium battery
▼Battery life
Continuous working time up to 3 years
▼Weight
500g
