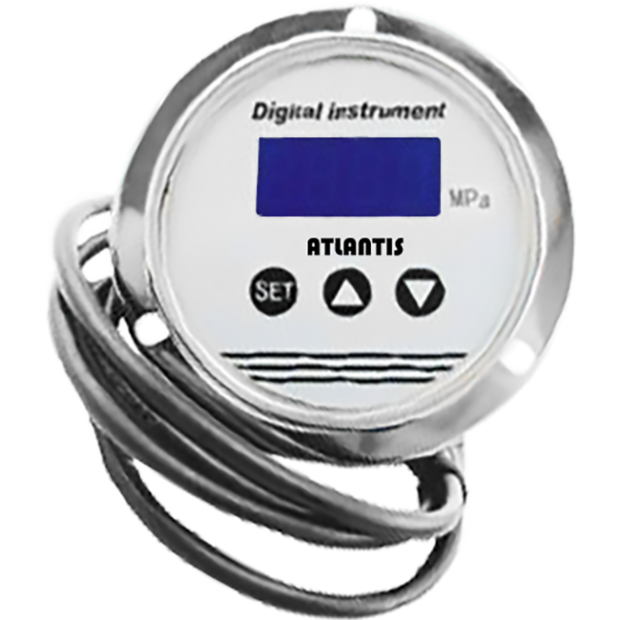

Ø60 Digital Pressure Gauge DPG-Q2.5-PSD
Ø60 Digital Pressure Gauge DPG-Q2.5-PSD
DPG-Q2.5-PSD digital pressure gauge adopts high tech piezoresistive silicon chip pressure sensor. The output signal will be processed through a high accuracy and low temperature drift amplifier then processed by a high accuracy analog to digital converter. The signal will be transformed to digital signal which microprocessor can process. The LCD screen will display the calculated value. DPG-Q2.5-PSD features easy, installation operation and setting, which is suitable for fluid pressure measurement in industrial application.
DETAIL
Model: DPG-Q2.5-PSD
Introduction
DPG-Q2.5-PSD digital pressure gauge adopts high tech piezoresistive silicon chip pressure sensor. The output signal will be processed through a high accuracy and low temperature drift amplifier then processed by a high accuracy analog to digital converter. The signal will be transformed to digital signal which microprocessor can process. The LCD screen will display the calculated value. DPG-Q2.5-PSD features easy, installation operation and setting, which is suitable for fluid pressure measurement in industrial application.
Features
■ 4-digit 0.36”LED screen display without visual error
■ The blue LED light ensures clear reading in strong light environment
■ External power supply - 8~30VDC
■ Ø60mm back mount with flange installation
■ Field zero & offset calibration
Main Specifications
▼Size
2.5”(60mm)
▼Installation type
Back mount (AD)／
Back mount with flange (BD)
▼Pressure connection
Material: SS304
1/4”PT
1/2”PT
M20 x1.5
Other thread types can be customized upon request
▼Pressure range
Gauge pressure▼
0~1000 bar
Negative pressure▼
-1~0bar
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Ambient temperature
-30°C to +80°C
▼Relative humidity
0~90% R.H.
Other Specifications
▼Case
Stainless steel
▼Case
SS304
▼Screen display
4-digit LED display
Reading height: 0.36”blue light tube
▼Power supply
8~30VDC external power supply
▼Pressure unit
Standard: MPa
Option: psi, bar, kPa or kg/cm2
▼Resolution
0.001
▼Measuring elements
High-tech piezoresistive silicon chip & SS316L diaphragm
▼Accuracy
±1.0%F.S. (standard)
±0.5%F.S. (options)
▼Stability
≤ 0.1%year
▼Operating pressure
Overpressure: 1.5* F.S.
