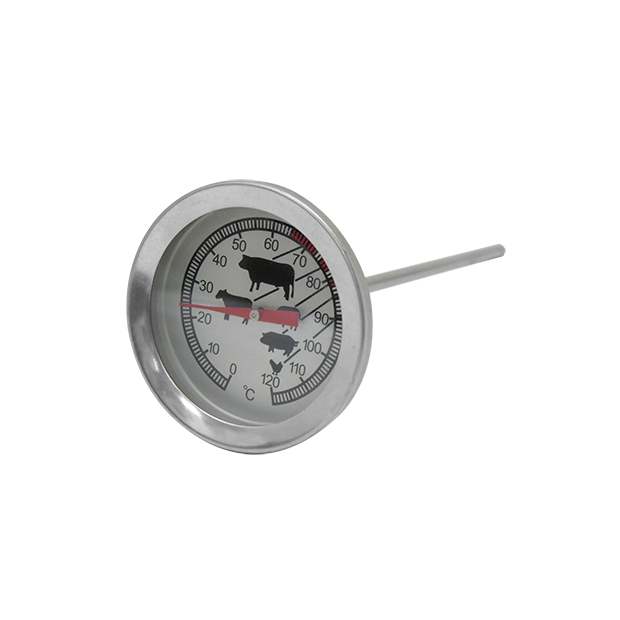

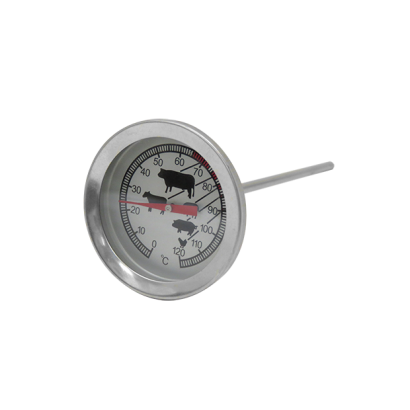

Bi-metal Thermometer (For Barbecue and Frying Type) BTT-BF
Bi-metal Thermometer (For Barbecue and Frying Type) BTT-BF
BTT-BF is specially design for barbecue and frying temperature measurement. The sharp stem end design ensures it can insert into meat or put into frying tank to directly measure temperature.
DETAIL
Model: BTT-BF
Introduction
BTT-BF is specially design for barbecue and frying temperature measurement. The sharp stem end design ensures it can insert into meat or put into frying tank to directly measure temperature.
Features
■ OEM service
■ Stem material adopts food grade SS304 Housing material adopts SS430
■ Special dial face - design for BBQ thermometer
■ Customizable stem outer diameter and length

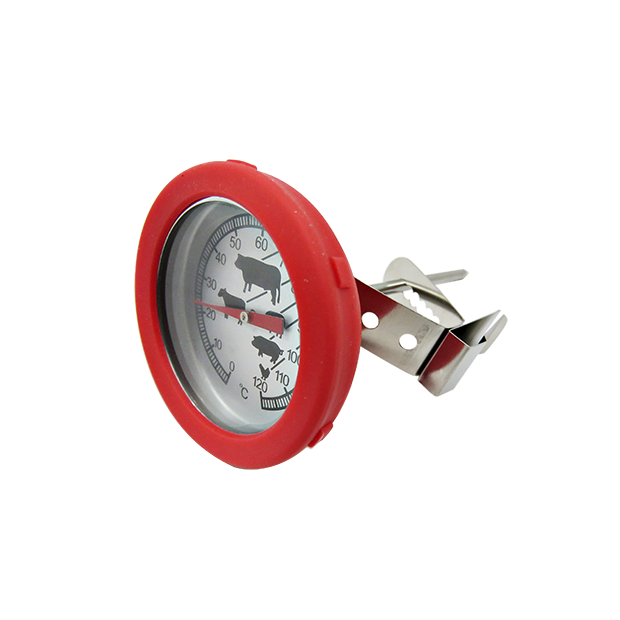

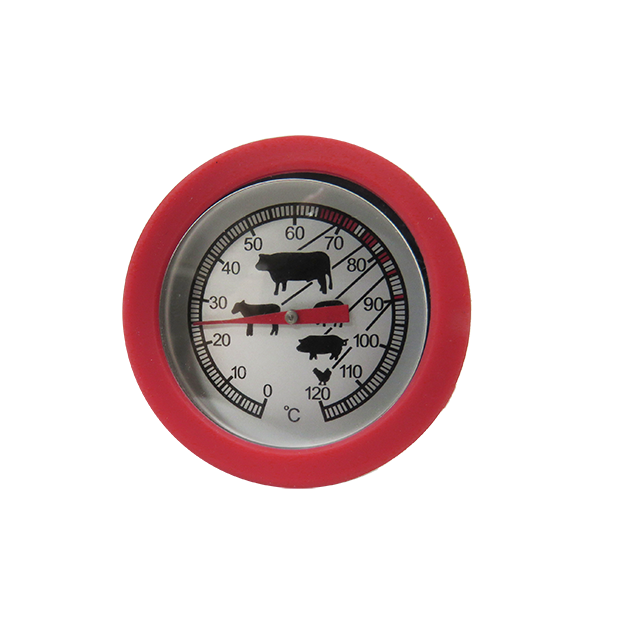

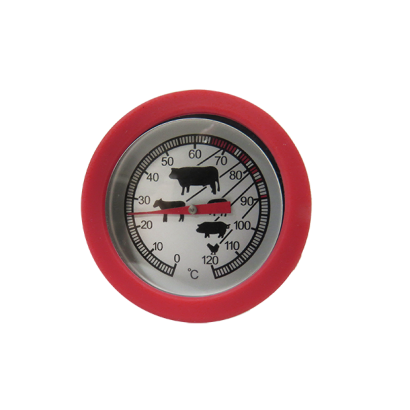

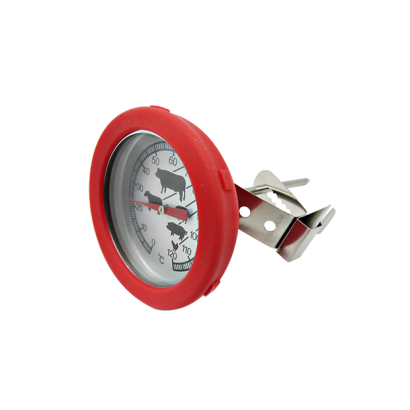

■ Additional protection: silicone rubber protective case (option)

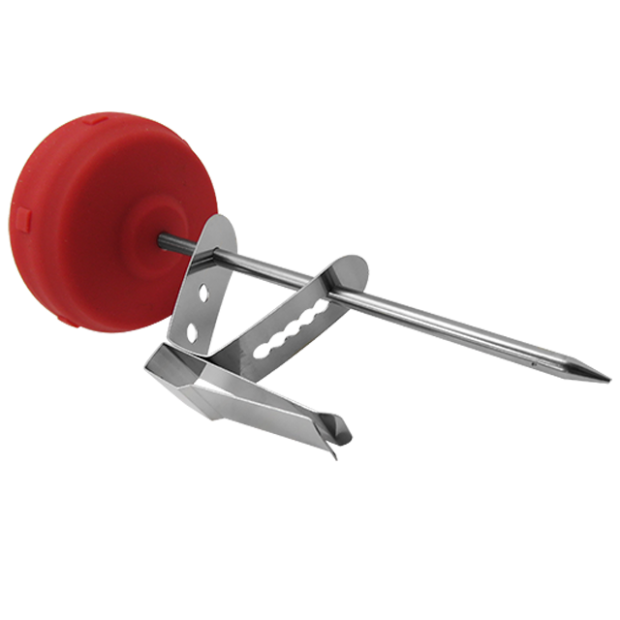

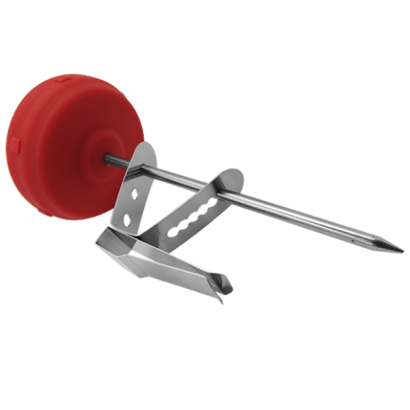

■ Optional accessory: fix clamp and plastic stem case (option)
Main Specifications
▼Size
2.1”(54mm)
▼Installation type
Back connection
▼Window
PC
▼Stem
Material: SS304
Outer diameter: 3.8mm (standard) / 5mm / 6mm (option)
Length: 132mm (standard)
Other stem outer diameter and length available upon request
▼Temperature range
Min.: -50°C
Max.: 350°C
(Custom temperature scale range available within -50 to 350°C)
▼Applicable fluid
Media that compatible with
SS 304
▼Protection level
IP 54
Other Specifications
▼Housing material
SS430
▼Pointer
Aluminum with red enamel / Aluminum with black enamel

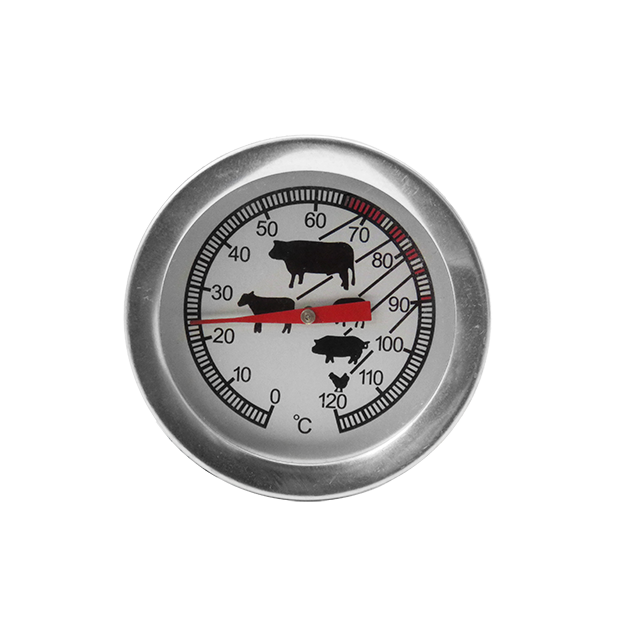

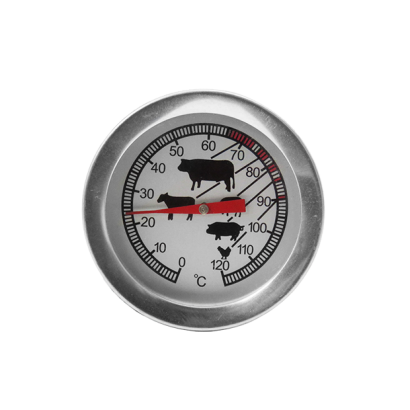

▼Dial face
Black scale on white board ℃ / ℉ single / dual scale
Common meat corresponding temperature icon
Customizable dial face
▼Measuring elements
Bi-metal
Temperature sensing area: last 2”-4”of stem
▼Temperature accuracy
1.5%
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
