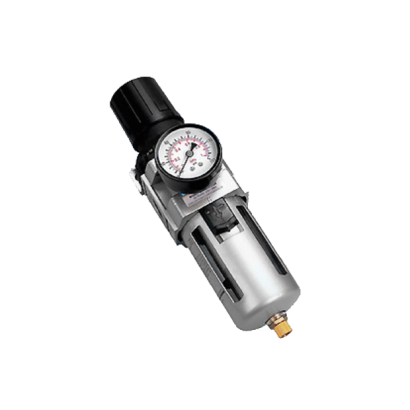

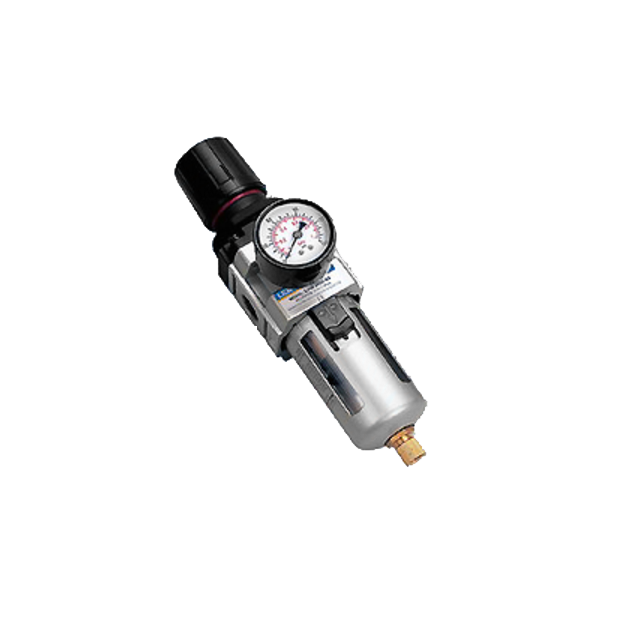

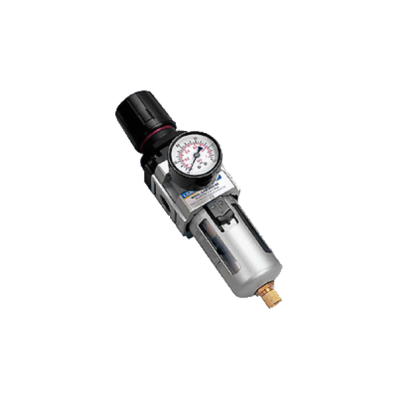

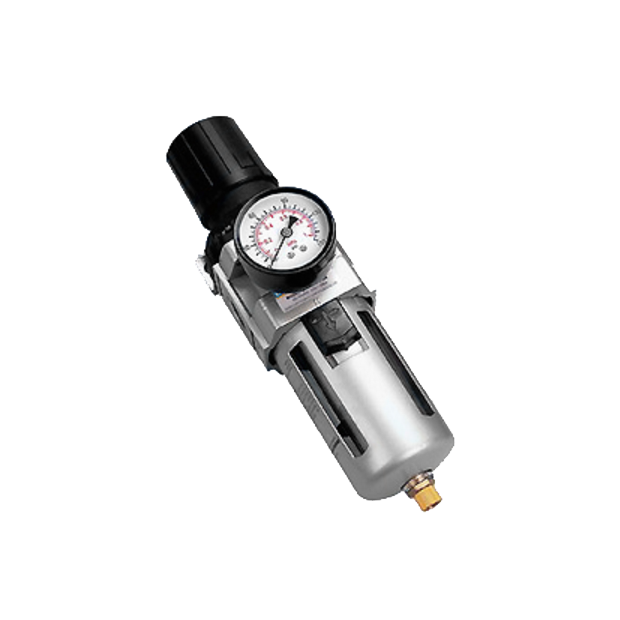

Filter + Regulator FR 3000/4000/5000
Filter + Regulator FR 3000/4000/5000
FR units combined with pneumatic particulate / moisture separation gas line filters and adjustable pressure regulators are available for pneumatic gas line filtering and regulation applications all in a single convenient unit.
DETAIL
Model: FR 3000/4000/5000
Introduction
FR units combined with pneumatic particulate / moisture separation gas line filters and adjustable pressure regulators are available for pneumatic gas line filtering and regulation applications all in a single convenient unit.
Features
■ Filter +Regulator combined design
■ With overflow function
■ Attached with a mounting bracket
■ Regulators come with a pressure gauge and protective cover
■ Outsourcing parts were selected and tested very strictly to ensure its quality
Main specifications
▼Dimension
FR 3000: 53 x 211 mm
FR 4000: 70 x 262.5 mm
FR 5000: 90 x 330 mm
▼Pipe joint bore
Size:
FR 3000: 1/4”, 3/8”
FR 4000: 3/8”, 1/2”, 3/4”
FR 5000: 3/4”, 1”
Specification: G, PT, NPT
▼Gauge connection
FR 3000: 1/8”NPT
FR 4000: 1/4”NPT
FR 5000: 1/4”NPT
▼Adjustable pressure range
0.05 to 0.85MPa
▼Max adjustable pressure
1.0Mpa
▼Operating temperature
5 to 60℃
Other Specifications
▼Body material
Aluminum die casting / Stainless steel
▼Container material
Polycarbonate
▼Rated flow
FR 3000 – 2000 L/min
FR 4000 – 4000 L/min
FR 5000 – 5500 L/min
▼Filtering element roughness
20u / 40u (option)
▼Ensured pressure resistance
1.5MPa
▼Drain function
Differential drain / Automatic drain
▼Valve
With overflow function
