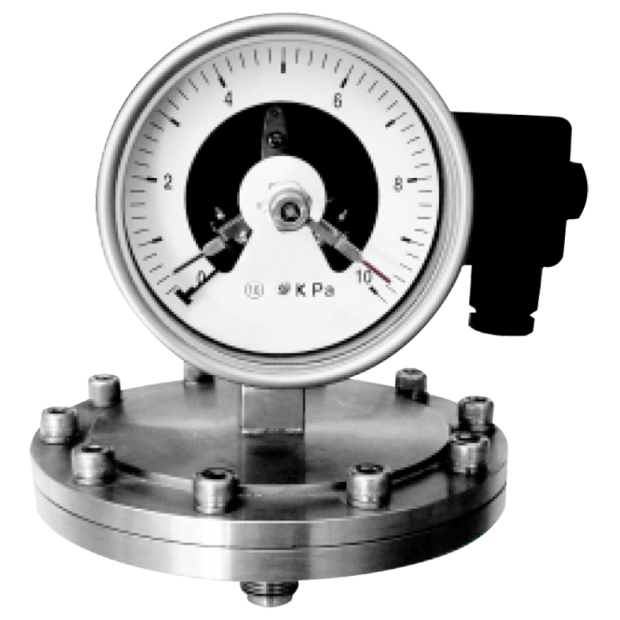

Dry Type Threaded Diaphragm Micro Pressure Gauge with Electrical Contacts DDS1160 (S)+ECM
Dry Type Threaded Diaphragm Micro Pressure Gauge with Electrical Contacts DDS1160 (S)+ECM
DDS1160 (S)+ECM dry type threaded diaphragm micro pressure gauge with electrical contact adopts diaphragm as pressure sensor with various material selection. DDS1160 (S)+ECM is design for gas and liquid micro pressure measurement, also applicable on corrosive and viscous media. Pressure gauge with oilfilling is applicable for high-vibration environment.
DETAIL
Model: DDS1160 (S)+ECM
Introduction
DDS1160 (S)+ECM dry type threaded diaphragm micro pressure gauge with electrical contact adopts diaphragm as pressure sensor with various material selection. DDS1160 (S)+ECM is design for gas and liquid micro pressure measurement, also applicable on corrosive and viscous media. Pressure gauge with oilfilling is applicable for high-vibration environment.
Features
■ OEM service
■ Specially design for micro pressure measurement, minimum measurable pressure: 4kPa
■ Oil fillable pressure gauge, ensuring properly work on high vibration environment
■ All stainless steel design with various material selection
■ Durable design enables longer service life
■ Up to two sets switch contact
■ Small magnets have been installed around switch to prevent frequently switch on/off
Main Specifications
▼Type
Standard / Vibration-proof (Insulation oil filling in pressure gauge)
▼Installation type
Bottom mount
▼Pressure gauge size
4”, 6”
▼Diaphragm seal
Diameter: 160mm
Housing: SS304 / SS316 / SS316L
▼Window
Safety glass / Organic glass (option)
▼Pressure connection
Size: 1/4”, 3/8”, 1/2”
Type: BSPT, NPT, PF
Material: SS304
Other thread specifications are available upon request
▼Pressure range
Positive pressure: 0…4 to 2500 kPa
Vacuum pressure: -100 to -4…0 kPa and other compound ranges
▼Applicable fluid
Liquid and gas that compatible with connection’s material
▼Ambient temperature
-40°C to +70°C (Standard)
-20°C to +60°C(Oil-filling type)
▼Fluid temperature
+60°C
▼Protection level
Standard: IP54
Pressure gauge with oil filling: IP65
Other Specifications
▼Case
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
All black scale
▼Measuring elements
Diaphragm
Material: SS316L (Standard)
Option: PTFE coating
Other special materials available upon requests
▼Movement
Stainless steel
▼Accuracy
4”: ±1.6%, ±2.5%
6”: ±1.6%
▼Set point accuracy
±4%
▼Contact points
1 or 2 contact(s)
▼Contact material
> 110V (80% Sliver, 20%
Nickel, 10μm Gold plating)
≦ 36V Gold
▼Maximum operating voltage
380V AC or 220V DC
▼Current rating
Make rating: 1A
Break rating: 1A
Continuous: 0.6A
▼Contact rating
30VA
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
Short time: 1* full scale
▼Other requests (Option)
Third party notarized documents
Inspection report (issued by Re-Atlantis)
Tag
Customized dial face (scale, color, etc.)
