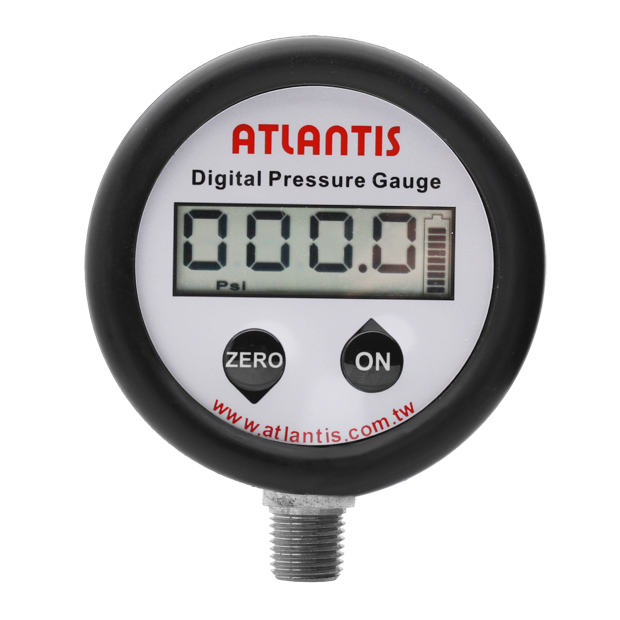

Digital Pressure Gauge
Digital Pressure Gauge DPG-M2.5
Digital Pressure Gauge DPG-M2.5
Features
■ OEM service
■ 4-digit LCD display, high resolution
■ Switching between real-time pressure and peak pressure display functions
■ Automatic shutdown time setting
■ Multiple pressure unit options
■ OEM service
■ 4-digit LCD display, high resolution
■ Switching between real-time pressure and peak pressure display functions
■ Automatic shutdown time setting
■ Multiple pressure unit options
DETAIL
Model: DPG-M2.5
Features
■ OEM service
■ 4-digit LCD display, high resolution
■ Switching between real-time pressure and peak pressure display functions
■ Automatic shutdown time setting
■ Multiple pressure unit options
Main Specifications
▼Size
2.5”
▼ Pressure connection
Material : Nickel-plated copper
1/4”NPT
1/4”PT
Other thread type available upon request
▼Pressure range
Please refer to pressure range table
▼Applicable fluid
Non-corrosive clean gas
▼Environmental temperature
0°C to +45°C
▼Storage temperature
-10°C to +70℃
▼Environmental humidity
85% R.H.
▼Temperature affects
Positive pressure: operating pressure range of ±1%
Negative pressure: operating pressure range of ±2%
Other Specifications
▼Screen disply
4-digit Lcd display with
backlight
▼Screen size
46 x 15 mm
▼Pressure unit
Positive pressure▼
psi, bar, kgf/cm2, kPa
Negative pressure▼
mbar, mmHg, inHg, kPa
▼Sensor component
Silicon semiconductor
▼Accuracy
±1.0% or ±1digit (@25℃)
▼Power supply
1.5V battery *3
▼Battery life
200 hours (no backlight condition)
▼Weight
160g (including protective cover)
