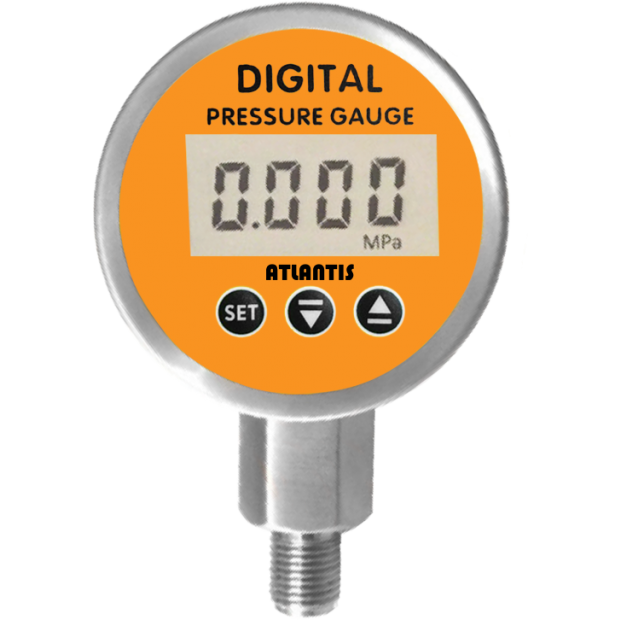

Digital Pressure Gauge DPG-X065R(EP)
Digital Pressure Gauge DPG-X065R(EP)
DPG-X065R(EP) features a built-in pressure that can instantly display pressure, while the pressure signal can be transmitted over a distance greater than 500 meters. It can be used to replace traditional dial pressure gauges or pressure sensors, offering a wide range of medium applicability. It is widely used in automation equipment, variable frequency water supply, medical devices, pneumatic and hydraulic systems.
DETAIL
Introduction
DPG-X065R(EP) features a built-in pressure that can instantly display pressure, while the pressure signal can be transmitted over a distance greater than 500 meters. It can be used to replace traditional dial pressure gauges or pressure sensors, offering a wide range of medium applicability. It is widely used in automation equipment, variable frequency water supply, medical devices, pneumatic and hydraulic systems.
Features
■ LCD display screen, clear and easy-to-read values, ignoring value errors
■ Good stability, designed to resist electromagnetic interference
■ Multiple pressure unit switching, error zeroing function
■ Wide temperature range, suitable for the vast majority of media
■ Accuracy can reach up to ±0.25%
Main specifications
▼Size
2.5”
▼Pressure connection
Material : Stainless steel
M20*1.5
G1/2
G1/4
1/2”NPT
1/4”NPT
Other thread type available upon request
▼Pressure range
Negative pressure and composite range: -0.1⋯-0.01~0.01⋯0.1⋯1MPa
Micro pressure: 0-5/10/16/25/40/60/100kPa
Regular pressure: 0-0.25/0.6/1/1.6/2.5/4MPa
High pressure: 0-6/10/16/25/40/60MPa
▼Applicable fluid
Liquid that compatible with stainless steel
▼Working temperature
-40°C~80°C
▼Compensation temperature
-10°C~70°C
▼Environmental temperature
-40°C~100°C
▼Protection level
IP65
Other specifications
▼Ring
SS304
▼Screen display
4-digit LCD
▼Output signal
RS485 / 4-20mA
▼Power supply
12-28VDC (24VDC)
▼Accuracy
±0.25%F.S. / ±0.5%F.S.
▼Stability
≦ 0.5% / year
▼Response time
≦2ms
▼Zero point temperature drift
Typical: ±0.02%F.S./℃
Max.: ±0.05%F.S./℃
▼Sensitivity temperature drift
Typical: ±0.02%F.S./℃
Max.: ±0.05%F.S./℃
▼Electrical protection
Reverse connection protection, designed to resist frequency conversion interference
▼Overload pressure
<10MPa 200％
≧10MPa 150%
