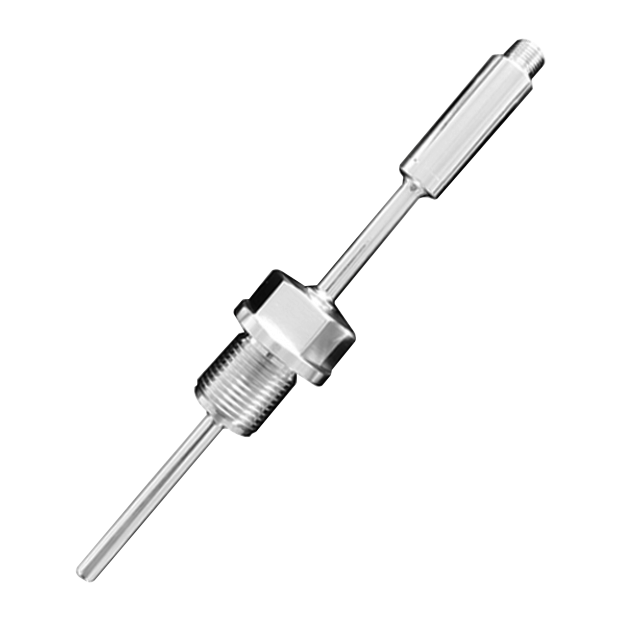

Thermocouple TC-S302
Thermocouple TC-S302
The TC-S302 thermocouple is an industrial temperature measurement sensor that uses contact temperature measurement. It has high accuracy and can directly measure liquids, vapors, and gases within the range of 0 to 1600℃. Standardized thermocouples such as type K or type S can be selected to meet industrial usage requirements. The probe and housing are made of SS 316, making it sturdy, corrosion-resistant, and stable and reliable for long-term use.
DETAIL
Model: TC-S302
Introduction
The TC-S302 thermocouple is an industrial temperature measurement sensor that uses contact temperature measurement. It has high accuracy and can directly measure liquids, vapors, and gases within the range of 0 to 1600℃. Standardized thermocouples such as type K or type S can be selected to meet industrial usage requirements. The probe and housing are made of SS 316, making it sturdy, corrosion-resistant, and stable and reliable for long-term use.
Features
■ Integrated design with a compact structure
■ Electrodes made of rare precious metal materials
■ Measurement range selectable from 0 to 1600℃
■ High temperature accuracy and fast response speed
■ Both the casing and the probe are made of SS316
Main specifications
▼Temperature range
0～850℃ (Type K)
0～1600℃ (Type S)
Please refer to the temperature range table
▼Process connection
Material: SS316
G1/4 , M20
Other specifications can be customized
▼Stem
Outer diameter: Φ4mm , Φ6mm , Φ8mm , Φ10mm
Length can be customized according to requirements
▼Applicable fluids
Liquid and gas that compatible with SS316
▼Protection level
IP 67
Other specifications
▼Case
SS 316
▼Output signal
Thermocouple output mV / 4~20mA
▼Transmission distance
≧1km
▼Accuracy level
Level I / Level II
