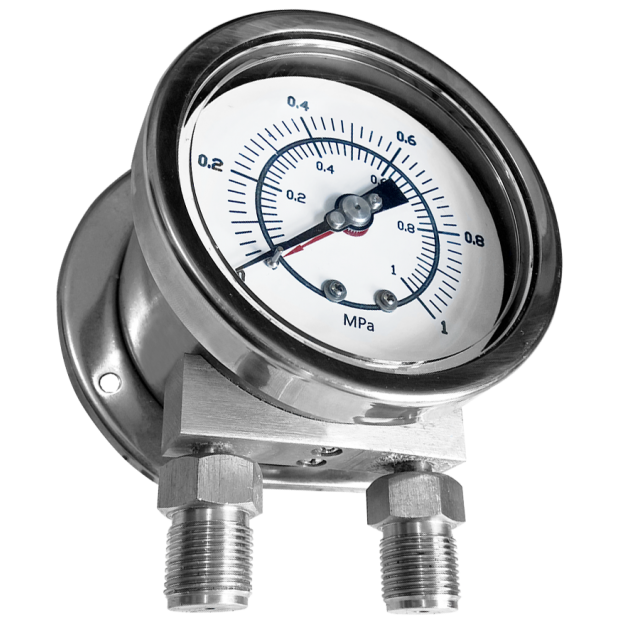

All Stainless Steel Differential Pressure Gauge (Dual Pointers & Bourdon Tubes Type) MDB-DPDB-SUS
All Stainless Steel Differential Pressure Gauge (Dual Pointers & Bourdon Tubes Type) MDB-DPDB-SUS
MDB-DPDB-SUS pressure gauge adopts dual Bourdon tubes as pressure sensor with dual pointers design. With its single or dual scales, MDB-DPDB-SUS can display readings from two different pressure sources at the same time.
DETAIL
Model: MDB-DPDB-SUS
Introduction
MDB-DPDB-SUS pressure gauge adopts dual Bourdon tubes as pressure sensor with dual pointers design. With its single or dual scales, MDB-DPDB-SUS can display readings from two different pressure sources at the same time.
Features
■ OEM service
■ All stainless steel differential pressure gauge with dual pointers and Bourdon tubes
■ Single / dual scale design - display pressure readings from two different sources at the same time
■ Various installation types
■ Install a switch contact, diaphragm seal or armored capillary (option)
Main Specifications
▼Size
4”, 6”
▼Installation type
Bottom mount (A) /
Bottom mount with flange (B) /
Back mount (Eccentric thread) (ADE) /
Back mount with flange (BDC) /
Back mount with flange (Eccentric thread) (BDE)
▼Window
PC / Glass
▼Pressure connection
Material: SS304
1/2”NPT
▼Thread hole pitch
54mm (option: 37mm)
▼Differential pressure range
0…6 to 600 bar
▼Applicable fluid
Non-crystallized or nonsolidified liquid and gas that compatible with SS304
▼Ambient temperature
-20°C to 60°C
▼Fluid temperature
+80°C
▼Protection level
IP54
Other Specifications
▼Ring
Stainless steel
▼Case
SS 304
▼Pointer
Outer scale pointer: Aluminum with black enamel
Inner scale pointer: Aluminum with red enamel
▼Dial face
White dial face, all black scale
Single/dual scale design
▼Measuring elements
Dual Bourdon tubes (Left-right side)
Material: SS304
▼Movement
Stainless steel
▼Accuracy
1.6%
▼Operating pressure
Stabilization: 0.75* full scale
