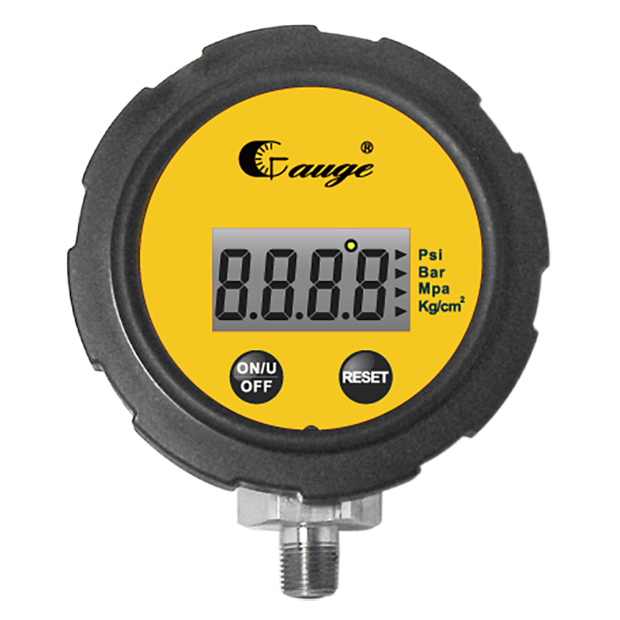

2.5”Digital Pressure Gauge DPG-2.5WP (BM)
2.5”Digital Pressure Gauge DPG-2.5WP (BM)
DPG-2.5WP(BM) features economic, easy-to-use and excellent performance, which is suitable for various instruments. It adopts latest temperature compensation technology to ensure ±1.0%F.S. accuracy within 0~5000psi pressure measurement.
DETAIL
Model: DPG-2.5WP (BM)
Introduction
DPG-2.5WP(BM) features economic, easy-to-use and excellent performance, which is suitable for various instruments. It adopts latest temperature compensation technology to ensure ±1.0%F.S. accuracy within 0~5000psi pressure measurement.
Features
■ OEM service
■ LCD screen with backlight ensures clear reading in the dark place
■ Power-saving design, 3 years battery life in backlight off mode
■ Switchable unit, zero adjustment and peak hold record function
■ Adopts temperature compensation technology, full scale accuracy±1.0%
Main Specifications
▼Size
2.5”
▼Installation type
Bottom mount (standard)
Back mount (customized)
▼Pressure connection
Material: SS304L
Thread size: 1/8”, 1/4”
Thread type: NPT, PT
Other threads can be customized upon request
▼Pressure range
0 to 5000 psi
▼Applicable media
Liquid and gas that compatible with SS304L
▼Ambient temperature
-10℃～+60℃
▼Storage temperature
-20℃～+70℃
▼Storage humidity
35～85% RH
▼CE certificate
EN61326-1:2013
Other Specifications
▼Case material
Plastic
▼Screen display
4-digit LCD display with backlight function
▼Screen size
32 (W) x 16(H)mm
▼Screen refresh rate
Max. 1.2 sec.／time
▼Resolution
0.001
▼Switchable unit
psi, bar, MPa, kg/cm2
▼Power supply
CR123A battery (3.0 V, 1400 mAh)
Battery life: 3 years (continued using without back light)
1.5 year (Continued using 5 seconds backlight, less than 5 times in a day)
▼Accuracy
±1.0% F.S. (@25±3℃)
▼Temperature compensation
-10℃~60℃
▼Max. operating pressure
2*F.S.
