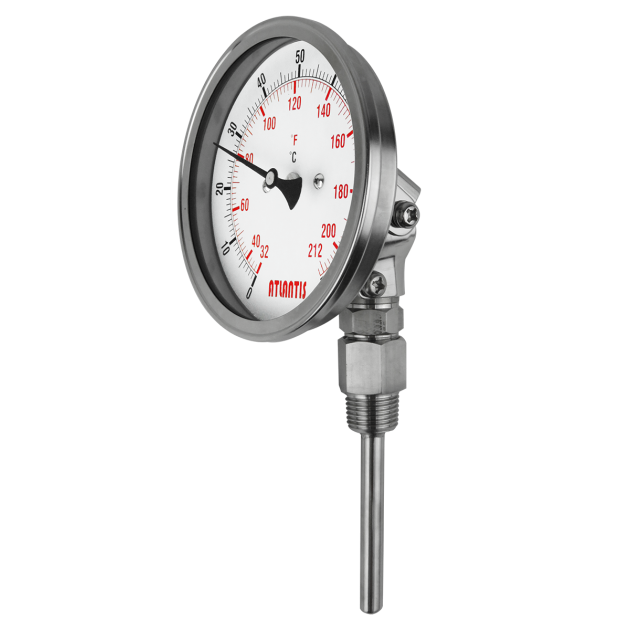

Media-Actuated Thermometer (Adjustable Angle Type) ITA
Media-Actuated Thermometer (Adjustable Angle Type) ITA
Features
■ OEM service
■ Adjustable angle thermometer
■ All stainless steel design
■ All stainless steel design
■ Full scale accuracy within 1.5%
■ Customized stem length
■ Dual temperature unit scale (℃/℉)
■ OEM service
■ Adjustable angle thermometer
■ All stainless steel design
■ All stainless steel design
■ Full scale accuracy within 1.5%
■ Customized stem length
■ Dual temperature unit scale (℃/℉)
DETAIL
Model: ITA
Features
■ OEM service
■ Adjustable angle thermometer
■ All stainless steel design
■ All stainless steel design
■ Full scale accuracy within 1.5%
■ Customized stem length
■ Dual temperature unit scale (℃/℉)
Main Specifications
▼Size
3”, 4”,5”,6”
▼Window
Glass
▼Installation type
Adjustable angle type
▼Process connection
Material: SS304
Thread size: 1/4”, 3/8”,1/2”,3/4”,1”
Thread type: BSPT, NPT, PF
▼Stem
Material: SS304／SS316
Outer diameter: 6.35mm
Length: 63.5mm ~ 2032mm
▼Temperature range
Min. -50°C
Max. +600°C
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Protection level
IP 54
Other Specifications
▼Ring
Stainless steel
Outside bayonet
▼Case
External adjustable screw
(Hexagonal flathead screw)
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Pressure unit, scale, and color can be customized upon request
▼Measuring elements
Media-expansion
Temperature sensing area : last 2”~4”of stem
▼Temperature accuracy
1.5% (Option: 1%)
▼Operating temperature
Stability: 3/4* full scale
Short-time: 1* full scale
